Feature availability 🛈 ✔️ Personal ✔️ Suite 🧩 Supported 3ds Max Versions
The “Replace Object <-> Proxy” functionality allows you to replace objects and their instances in your scene with proxies and vice versa. These objects and proxies must be added from assets in Connecter, using the “Merge and Place” and “Merge and Place as Proxy” functionalities.
When replacing objects or proxies, the settings from the “Proxy Settings” dialog are used to search for existing proxies and create new ones. If you haven’t used the “Merge and Place as Proxy” functionality, the first time you execute “Replace Object <-> Proxy”, the “Proxy Settings” dialog will be shown.
Take special care when you set the “Asset name”, "Object name”, and “Create a separate proxy for each object” options. For more information on the settings see “Merge and Place Assets as Proxy.”

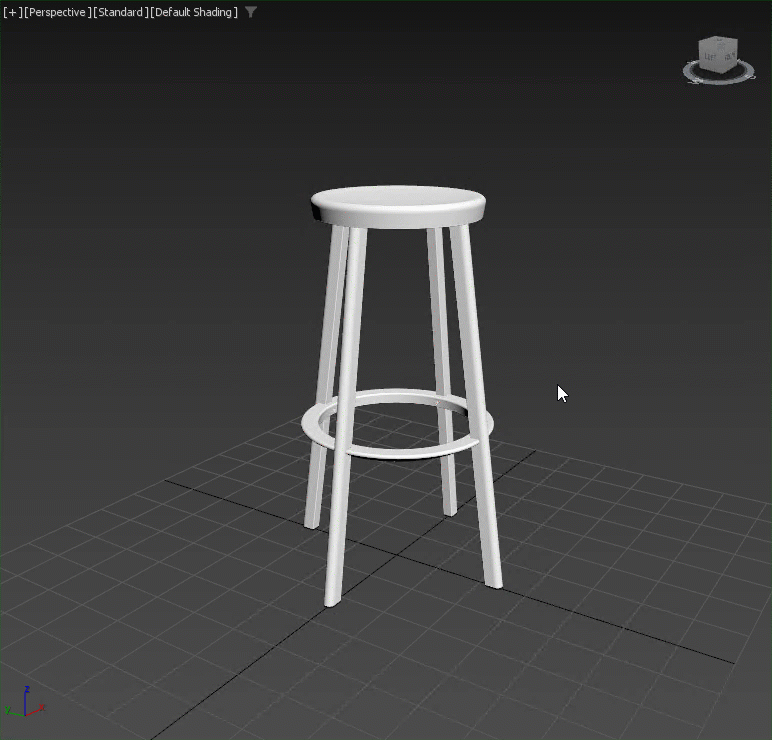

Replace Object <-> Proxy.
IMPORTANT: This functionality works only for objects that were added to the scene using the “Merge and Place” and “Merge and Place as Proxy” functionalities from the integration.

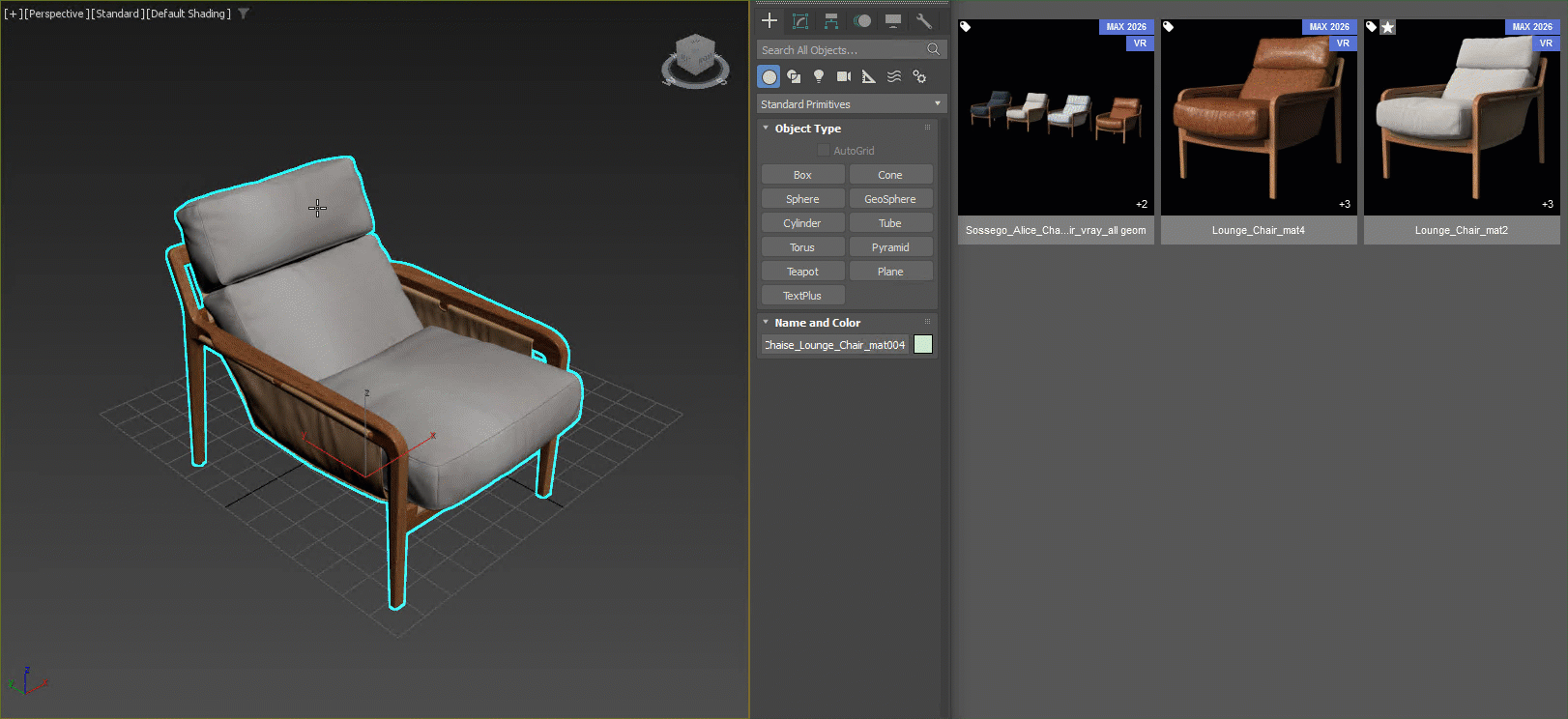

"Unable to Locate Proxy" dialog.
Handling Instances
The “Replace Object <-> Proxy” functionality can also replace the instances of the selected objects and proxies streamlining the process of changing many objects with proxies in large scenes. This settings can be changed from the “Proxy Settings” dialog.

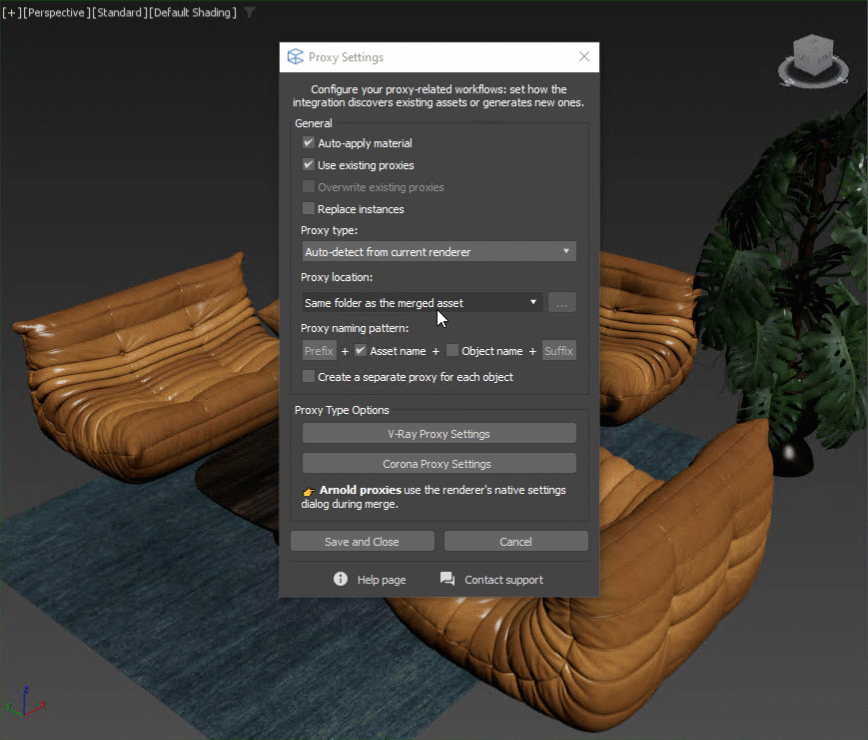

Replace instances – disabled.

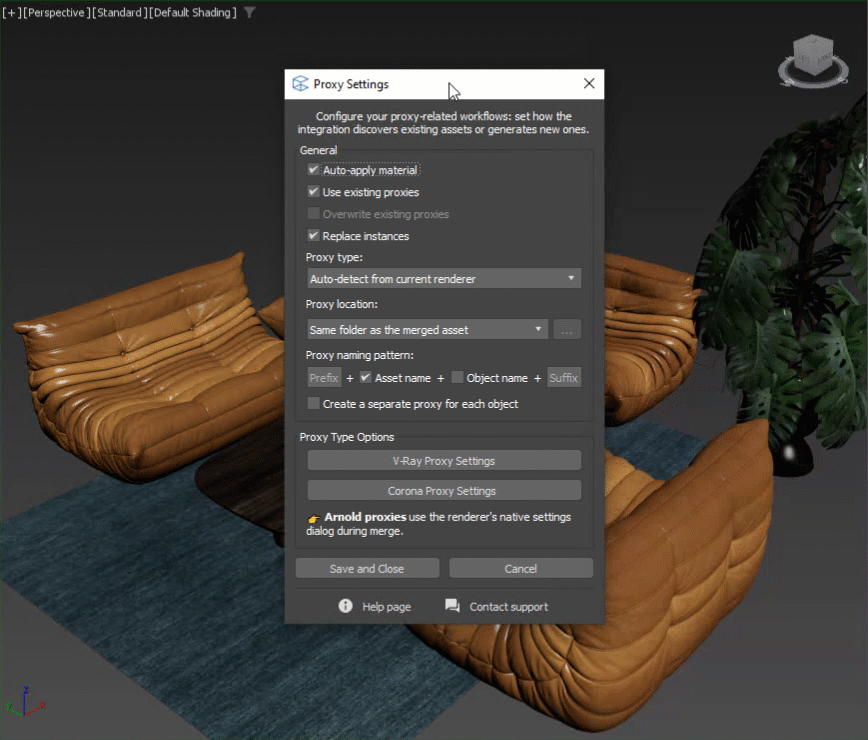

Replace instances – enabled.
